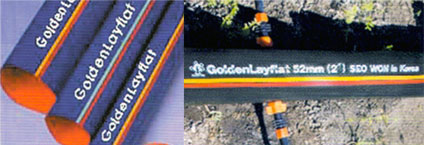

GoldenLayflat is the suitable layflat hose for water transfer, slurry, water containing sand and general drainage at reasonably high pressures.

Drip Irrigation

Sprinkler Irrigation

General Water Delivery

Outstanding flesibility and simple installation

Long endurance due to high strength against pressure

No light penetration and, therefore, no moss or microorganism

Size (inch)	I.D (mm)	Thickness (mm) Tolerance: ±0.1	Working Pressure (bar)	Burst Pressure (bar)	Weight (kg/Roll) Tolerance: ±5%	Packing unit (m/Roll)	20ft container Loading Capacity (Roll)
1½	40±2	1.45	6	18	21	100	730
2	52±2	1.45	5	14	28	100	600
2½	65±2	1.45	5	14	35	100	480
3	77±2	1.45	4	13	42	100	415
4	103±2	1.45	4	12	58	100	320
5	128±2	1.55	3	10	72	100	195
6	153±2	1.7	3	10	98	100	175
8	207±4	1.9	3	9	148	100	100

Size (inch)	I.D (mm)	Thickness (mm) Tolerance: ±0.1	Working Pressure (bar)	Burst Pressure (bar)	Weight (kg/Roll) Tolerance: ±5%	Packing unit (m/Roll)	20ft container Loading Capacity (Roll)
1½	40±2	1.3	4	13	19	100	870
2	52±2	1.3	3	10	25	100	690
2½	65±2	1.3	3	9	30	100	575
3	77±2	1.3	3	8	39	100	500
4	103±2	1.3	2	6	47	100	385
5	128±2	1.4	2	6	66	100	225
6	153±2	1.5	2	6	90	100	210

Size (inch)	I.D (mm)	Thickness (mm) Tolerance: ±0.1	Working Pressure (bar)	Burst Pressure (bar)	Weight (kg/Roll) Tolerance: ±5%	Packing unit (m/Roll)	20ft container Loading Capacity (Roll)
2	52±2	1	3	10	20	100	930
3	77±2	1	2	6	27	100	675
4	103±2	1	2	6	36	100	530

Size (inch)	I.D (mm)	Thickness (mm) Tolerance: ±0.1	Working Pressure (bar)	Burst Pressure (bar)	Weight (kg/Roll) Tolerance: ±5%	Packing unit (m/Roll)	20ft container Loading Capacity (Roll)
2	52±2	1	4	13	15	100	930
3	77±2	1	3	10	21	100	675
4	103±2	1	3	10	28	100	530

* Other roll length and specifications are available to meet customers' needs.
